Remote Logger for Home Assistant¶

Use log aggregation and analysis tools to get a complete picture of your home automation. Remote Logger for Home Assistant listens to Home Assistant logging at source and sends structured log events to a remote Syslog or OpenTelemetry (OTLP) collector. Optionally forwards other Home Assistant events, such as lifecycle events, service calls, configuration updates, state changes.

Unlike many logging solutions that scrape consoles logs, Remote Logger taps into either the root Python logger or the system_log_event Event fired by Home Assistant, preserving the full structure so multi-line logs and stacktraces are preserved as single log entries, utilizes the Home Assistant logic to tie exceptions back to source code lines, and will capture script names, line numbers and versions properly.

Only Home Assistant server itself, with its custom components is supported. Logs from apps (previously known as 'add-ins'), HAOS or the HA Supervisor aren't provided as events to be captured, so require an alternative solution, like Bert Baron's LogSpout Home Assistant App will cover these. It can be used in combination with Remote Logger so that Home Assistant has good structured logs, and everything else is at least logged. Since it uses Syslog and OTLP it can also be easily integrated with practically everything else in your environment, including SIEM cybersecurity logs from firewalls, Unifi networking, Docker logs etc. See the section on aggregators for suggestions if you're not familiar with these.

Translations are available for Dutch, English, French, German, Hindi, Italian, Japanese, Polish, Portuguese, Simplified Mandarin and Spanish.

Installation¶

Remote Logger is a HACS component, so that has to be installed first, using the instruction at Getting Started with HACS.

The integration installs using the Home Assistant integrations page, and has no YAML configuration.

Event Based Logging¶

If choosing event based logging over the Python root logger, then a YAML change is required to the Home Assistant System Log integration, to enable event forwarding for system_log_event. This is not required if using the default Python root logger approach.

yaml title="Home Assistant Configuration" system_log: fire_event: true

Open Telemetry (OTEL)¶

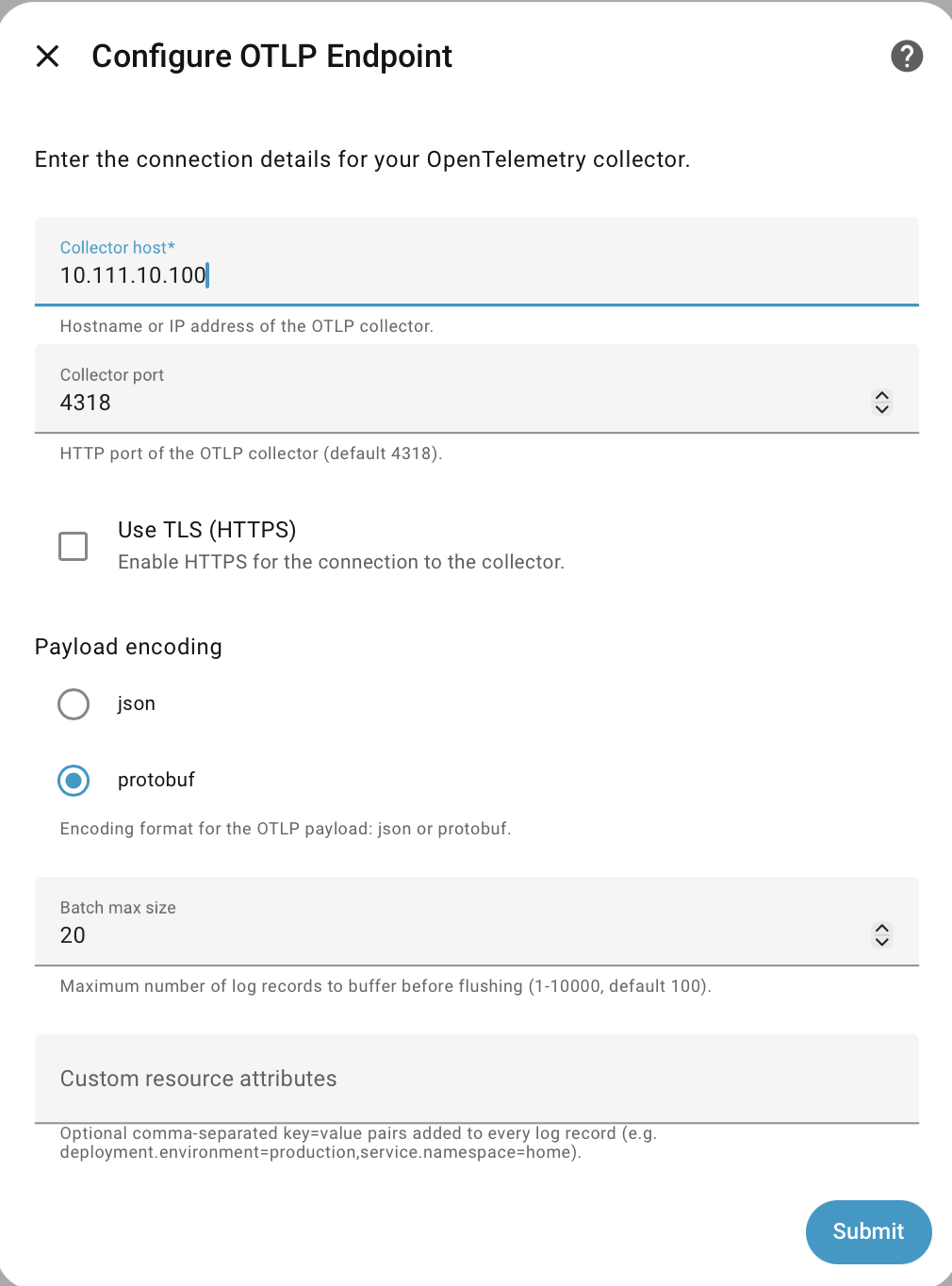

Logs are sent using Open Telemetry Logs specification over a Open Telemetry Protocol(OTLP) connection, either as Protobuf or JSON, and currently only as HTTP (gRPC may be added in future).

For more information, see OpenTelemetry Logging.

Log records are collected and sent in a bundle

Syslog¶

Messages are sent using the more recent RFC5424 format, with additional structured data using OTEL taxonomy (see Additional Attributes).

Syslog can be sent as TCP or UDP.

Events¶

System Log Event¶

Note the requirement at Installation to enable this event, which isn't fired by default. This is limited to Warning and Error events. Find out more at the System Log integration documentation.

Remote Logger will omit its own log events from the stream, to prevent the possibility of event loops. As an alternative, error stats and messages are available as diagnostic entities.

Additional Attributes¶

The following additional attributes, derived directly from the Home Assistant log event, are provided as Syslog STRUCTURED-DATA attributes, or OTEL attributes.

• code.file.path
• code.line.number
• code.function.name (this is the logger value from Home Assistant)
• exception.count
• exception.first_occurred
• exception.stacktrace

OTEL taxonomy is used for both OTEL and Syslog since there's no standard taxonomy at this level of Syslog.

Other Events¶

Remote Logger can log any Home Assistant event, and knows about the core ones, in order to create a more readable message. Find out more in the Events guidance.

Log Servers¶

There are a zillion possible solutions for capturing, analyzing, aggregating and storing logs. Generally a log setup requires:

• Collector - The thing that sits on the monitored service and sends out the logs. This Remote Logger is a collector for Home Assistant core, as is LogSpout Home Assistant App for HAOS.
• Aggregator - Receives logs from collectors, enriches, filters, converts formats and forwards on. See Log Aggregators for more information.
• Store - Typically a database that holds the logs, and any column indexes or free text search indexes
• Analytics - Query by SQL or similar, keyword search, graphing, counting etc

These suggestions are for options that are open source and free, at least for home use, and will work in Docker.

• Vector as the aggregator and GreptimeDb as the store and analytics - they are fast, lightweight, open source, customizable and run under Docker. Vector has support for OTEL logging, as well as Syslog, and has good remapping ability to fine tune each source. Its then easy to pull in logs from Docker servers, firewalls, Unifi switches or wherever else into one time-line, as well as server and network metrics. See the examples for a sample configuration.

• OpenObserve can do all three jobs ( aggregator, store, analytics ) for many sources, although it now recommends using Vector for Syslog. It also has a more functional log query interface, especially for people used to Splunk, and reuses the VRL (Vector Remap Language) for its own pipelines.

Diagnostic Entities¶

Home Assistant sensors are created and updated to monitor log activity, plus any errors either generating log messages or posting them to remote servers.

Diagnostic Actions¶

Home Assistant actions are supported to send a test event, force flush the log buffers and show the last payload posted.
